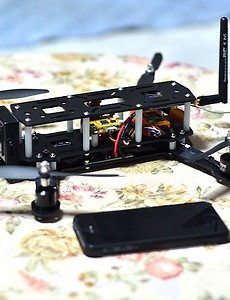

  1. 2015.03.06 [RC Academy] 까치 250 FPV Racing Model
  2. 2014.02.14 [RC Academy] Magpie M Micro 250 Quad Drone

Add to Flipboard Magazine. MediaPaper FlipBoard [GO]



























[제품]

- 까치250 전체부품

- 파워보드



[추가 부품]

FC            : CC3D , Naze32,Flip32+ 등등

Motor      : SunnySky 2204 2300kv 급

ESC          : 10A 이상

Prop        : 5X6

Camera   : 1/3 inch sony ccd video camera

Servo       : Dimension: 23x12.2x29mm 규격

RX             : 2.4G

VTX /VRX   : 5.8G


[매뉴얼]

까치-250 조립 설명서.pdf



/ Photo & Media provided by  RC 사관학교 지창구 Press Release

/ MediaPaper.KR mediapaper@ymail.com  Sejin Oh

/ The News Article was written by receiving a Press Release.



저작자 표시 비영리 변경 금지
신고

'Aero-Drone > RC Academy' 카테고리의 다른 글

[RC Academy] 까치 250 FPV Racing Model  (0) 2015.03.06
[RC Academy] Magpie M Micro 250 Quad Drone  (0) 2014.02.14
Add to Flipboard Magazine. MediaPaper FlipBoard [GO]





Visit Sejin Oh's profile on Pinterest.
Posted by Oh Sejin mediapaper

댓글을 달아 주세요


Add to Flipboard Magazine. MediaPaper FlipBoard [GO]




 - Frame : Magpie M Micro 250 Quad Drone Prototype

 - FC : CC3D

 - ESC : 12A simok firmware

 - CCD : 700TVL

 - Motors : Sunnysky 2204 2300kv예정(배송중)

 - Prop : 5030(5x3)

 - Video Tx : immersion 600 mW

 - battery : 3S 1300mah

 - Run Time  : 7~ 8Min


▶  Magpie M Micro 250 Quad Drone : Drawing‎ Paper Prototype




▶  Magpie M Micro 250 Quad Drone : Prototype








/ Photo provided by 지창구 / RC아카데미 ( http://cafe.naver.com/rcac )  Press Release

/ MediaPaper.KR mediapaper@ymail.com  Sejin Oh

/ The News Article was written by receiving a Press Release.
